Fan Coil Units > One Way Cassette Type FCU
Napoleon AC
Napoleon AC
Napoleon AC

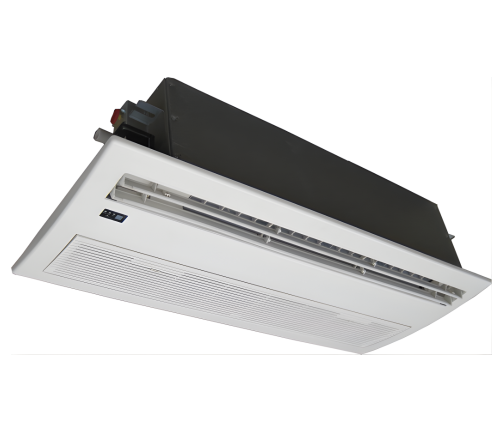

One Way Cassette Type FCU

Air flow (m3/hr) : 340 m3/hr - 850 m3/hr
CFM : 200 - 500
Includes : Modbus PCB / Remote Controller
Water Pipe System : Two tube system ( 4 tube system on request)
Dimensions : L X W X H
Unit : 958 X 413 X 236
Panel : 1044 X 468 X 31

Features

  • Easy installation in the side of ceiling
  • Unit thickness - 235 mm
  • Auto Swing, Wide air flowing range
  • Built-in self diagnostic system
  • Compatible with building management systems (BMS)
  • Quick and hassle-free installation with easy servicing
  • Quite Running - Double fan structure installed makes the unit running more stable
  • Automatic fan speed control
  • Dehumidification (dry) operation
  • High-capacity condensate drainage pump ( 750 mm)
  • Automatic restart after power failure
  • Blue hydrophilic coated aluminium fins
  • Programmable timer function
  • Fresh air intake and circulation
  • Left/ Right water tube connection provided
